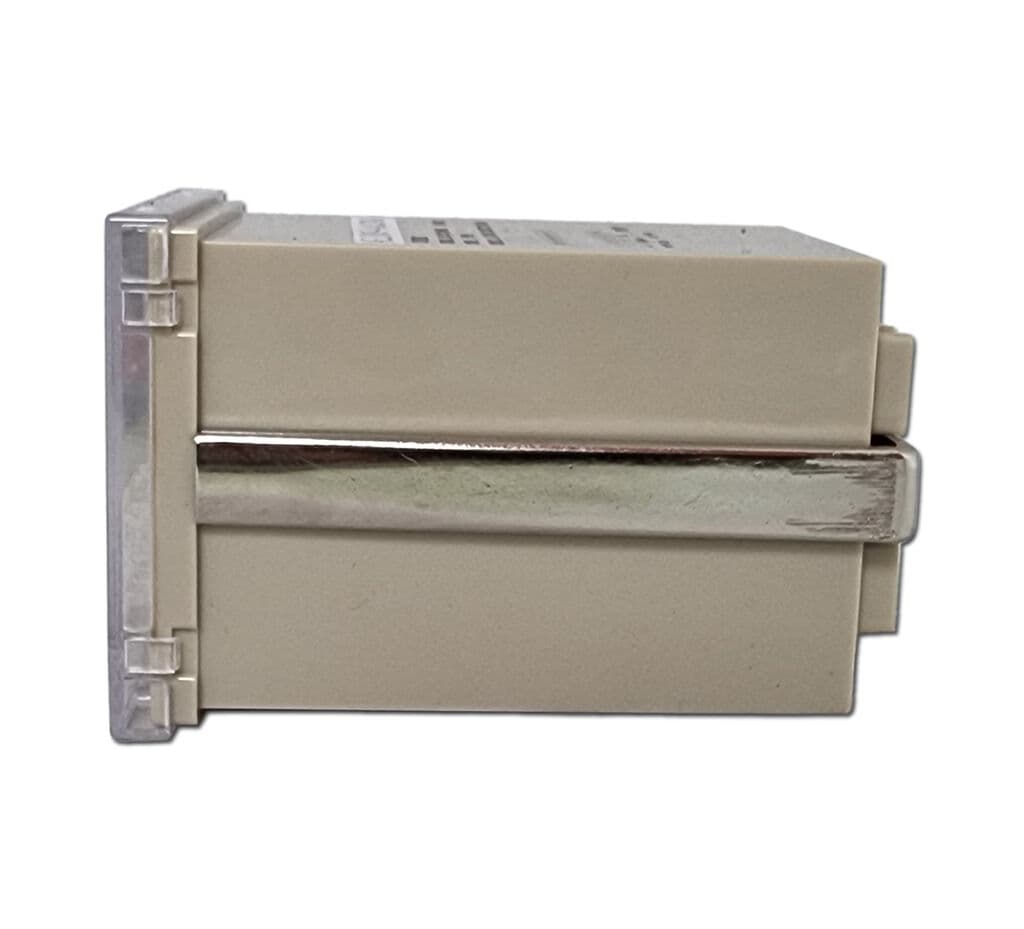

Alfa Electric Бројач 1–9999 220V AEJDM9-4
Бренд:Alfa Electric
Продавач:АЛФА ЕЛЕКТРОНИК
1.380ДЕН
Ананас. Е-трговец број 1 во Северна Македонија.
Најдобра вредност за парите 2025/2026 од СЕРТИФИКАТ .
Трговецот потврдува постоење на законска гаранција за сообразност на стоката.
| AEJDM9-4 | |
| Supply voltage | 220V AC 50/60Hz |
| Operating mode | UP counting |
| Output mode | N (Default): When count reach to set value, count stop, relay switch on |
| C: When count reach to set value, relay switch on, then switch off immediately, count reset to zero, then go on counting | |
| R: When count reach to set value, relay switch on, after a short time, relay switch off, count reset to zero, then go on counting | |
| F: When count reach to set value, count go on, relay switch on | |
| Input Signal | Contact,level, sensor |
| Max. counting speed | Contact: 30cps: Level or sensor (default is PNP) |
| signal: 1000 cps (need to be customized) | |
| Control form | SPDT |
| Contact rating | 5A@250Vac, 7A@24Vdc |
| Power consumption | 3VA max |
| Indication method | 8-segment 4-digital display |
| Counting error | ≤1 |
| Reset time | ≥0.05s |
| Dielectric strength | 2000Vac, 50/60Hz for 1min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Matched sensor | PNP type: M8 2mm Sn, M12 4mm Sn, M18 8mm Sn, M18 2m Sn, M130 4m Sn |
| External dimensions | 78x78x128 mm |
