Arduino ARD-217, PWM Драјвер 6-90V 15A За Степ Мотор

Parameters:

• Working Voltage: DC 6V~90V(the output voltage is 1~100 percent of input voltage)
• Potentiometer: Resistance B10K; Line 20cm; Hole 8mm
• Control Power: 48W~720W
• Rated Current: 8A
• Maximum Current: 15A
• Speed Adjustable Range: 0%~100%
• PWM Frequency: 16KHZ

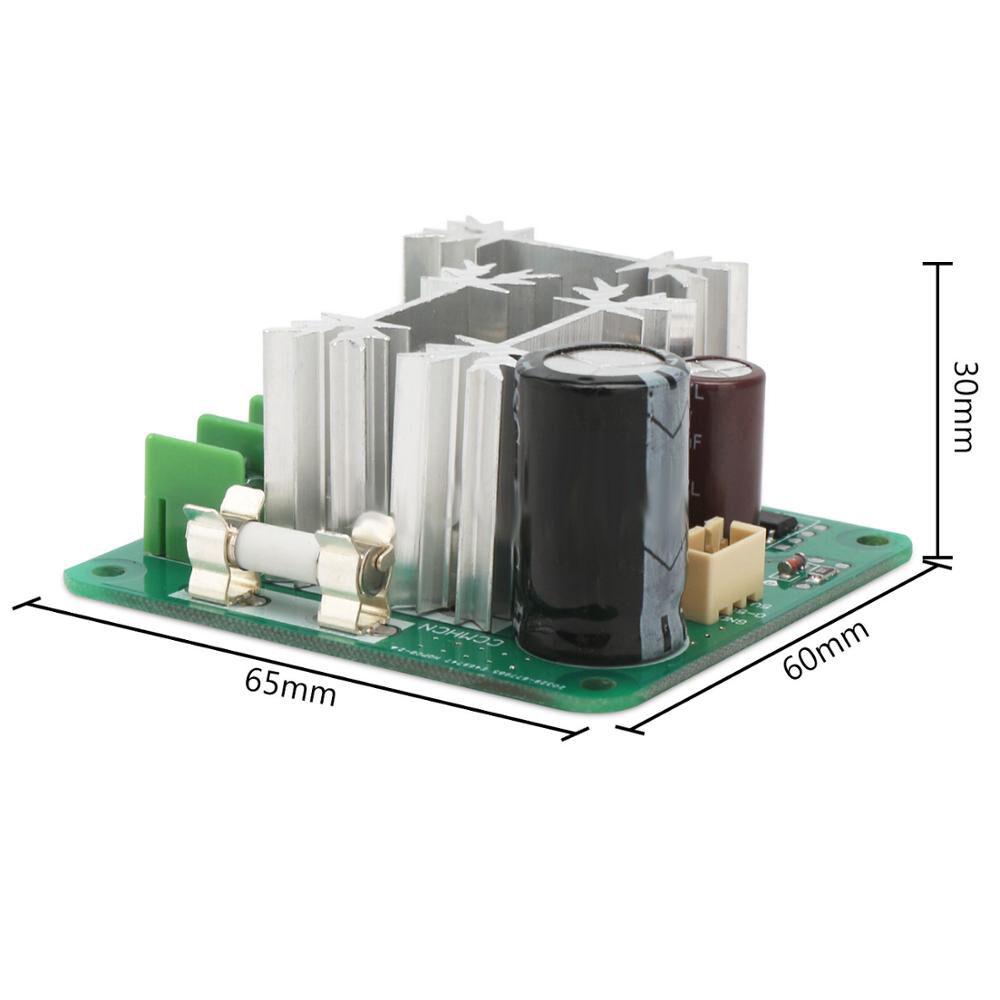

• Dimension: 65 x 60 x 30mm

Net Weight: 75g

Note:
- The power supply should be DC, can't be AC, or the DC motor speed controller will be burnt.
- Please make sure the connection with power supply is correct, or the speed controller will be broken.
- The positive and negative can be ignored, when the running direction is inconsistent with the expectations, you can change the direction by changing line sequence.
- Adjust potentiometer knob, which can change the speed controller output duty cycle, to change motor speed.
