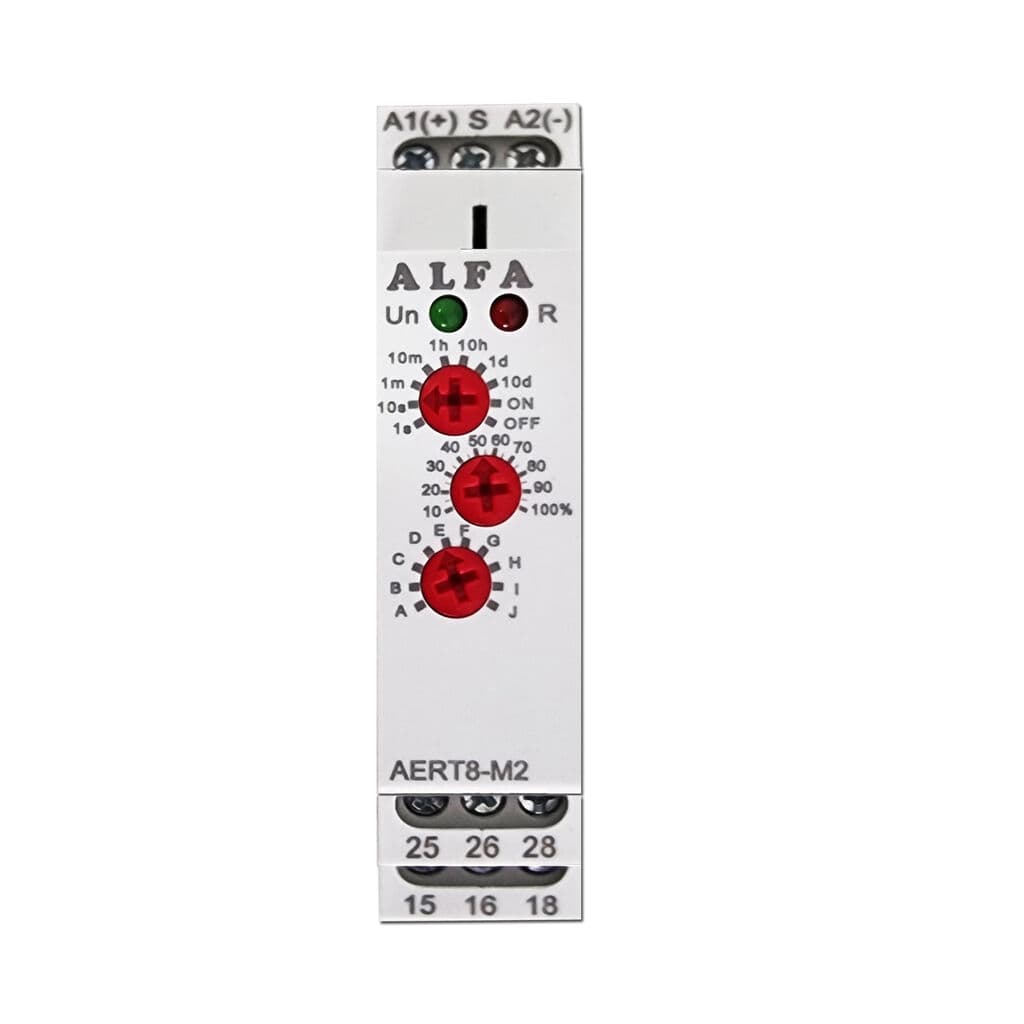

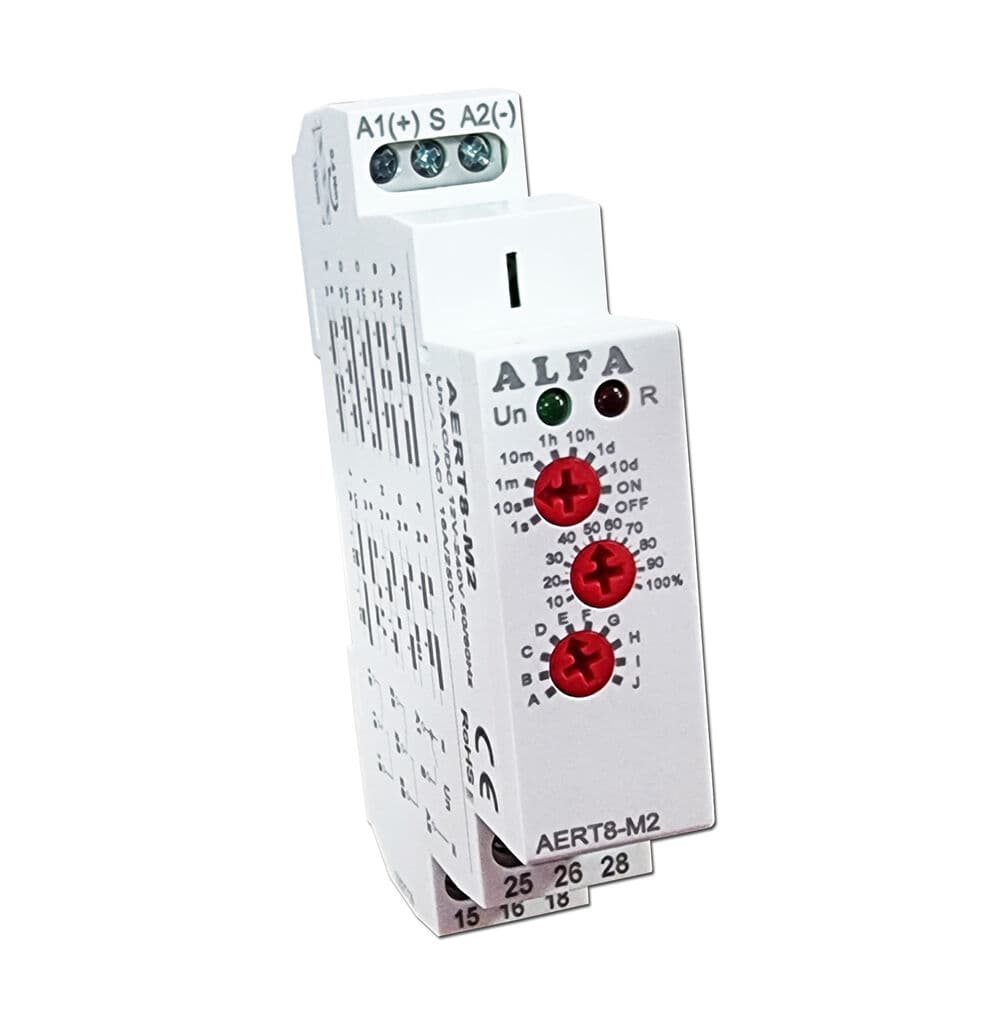

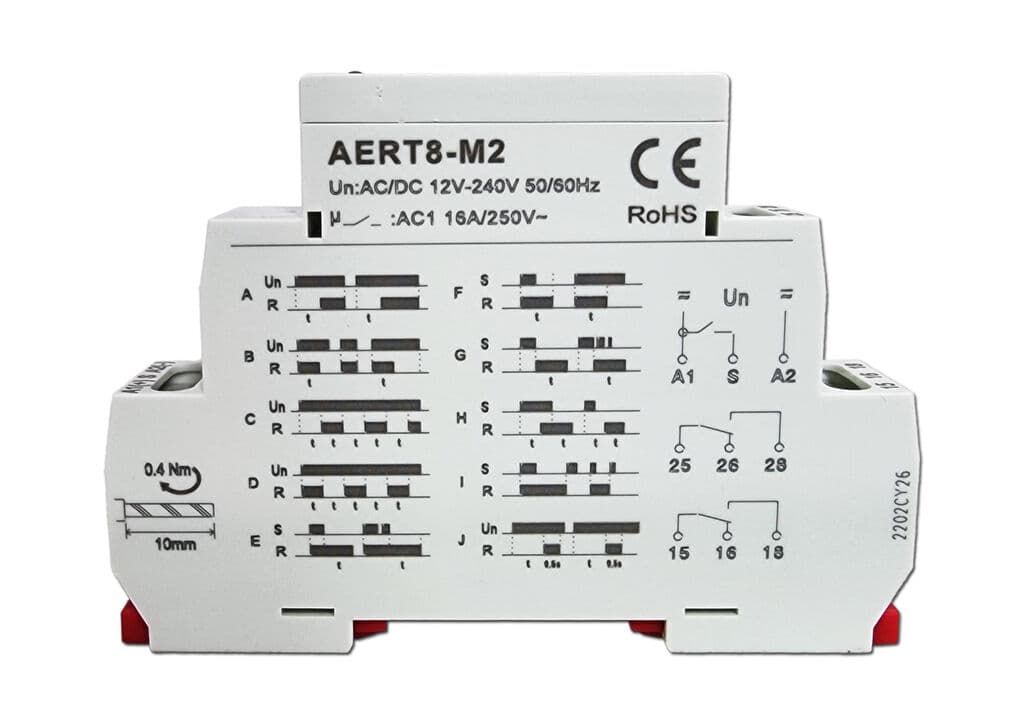

Alfa Electric Мултифункционално временско реле-тајмер 12–240V AC/DC AERT8-M2
Бренд:Alfa Electric
Продавач:АЛФА ЕЛЕКТРОНИК
1.820ДЕН
Ананас. Е-трговец број 1 во Северна Македонија.
Најдобра вредност за парите 2025/2026 од СЕРТИФИКАТ .
Трговецот потврдува постоење на законска гаранција за сообразност на стоката.
| Supply terminals | A1-A2 |
| Voltage range | AC/DC 12-240V(50-60HZ) |
| Burden | AC 0.7-3VA/DC 0.5-1.7W |
| Voltage range | AC 230V(50-60HZ) |
| Power input | AC max. 12VA/1.9W |
| Supply voltage tolerance | -15%;+10% |
| supply indication | green LED |
| Time ranges | 0.1s-10day,ON,OFF |
| Time setting | potentionmeter |
| Time deviation | 5%-mechanical setting |
| Repeat accuracy | 0.2%-set value stability |
| Temperature coecient | 0.05%/℃,at=20℃(0.05%℉,at=68℉) |
| Output | 2×SPDT |
| Current rating | 16A/AC1 |
| Switching voltage | 250VAC/24VDC |
| Min.breaking capacity DC | 500mW |
| Output indication | red LED |
| Mechanical life | 1×107 |
| Electrical life(AC1) | 1×106 |
| Reset time | max.200ms |
| Operating temperrature | -20℃ to +55℃(-4℉ to 131℉) |
| Storage temperature | -35℃ to +75℃(-22℉ to 158℉) |
| Mounting/DIN rail | Din rail EN/IEC 60715 |
| Protecting degree | IP40 for front panel /IP20 terminals |
| Operating position | any |
| Overvoltage category | Ⅲ |
| Pollution degree | 2 |
| Max.cable size(mm²) | soild wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12) |
| Dimensions | 90×18×64mm |
| Weight | 2×SPDT:W240-82g,A230-81g |
| Standards | IEC/EN 61812-1,IEC/EN61010-1 |
