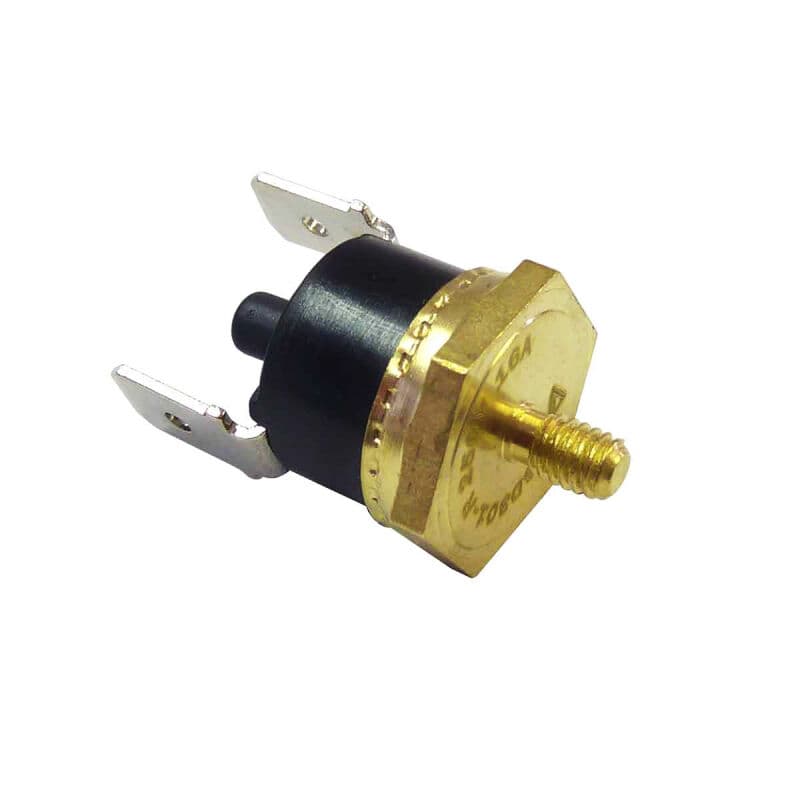

Alfa Electric Термостат 85°C мини кликсон NC M4 метална основа

Supply terminals    A1-A2
Voltage range    AC/DC 12-240V(50-60HZ)
Burden    AC 0.7-3VA/DC 0.5-1.7W
Voltage range    AC 230V(50-60HZ)
Power input    AC max. 12VA/1.9W
Supply voltage tolerance    -15%;+10%
supply indication    green LED
Time ranges    0.1s-10day,ON,OFF
Time setting    potentionmeter
Time deviation    5%-mechanical setting
Repeat accuracy    0.2%-set value stability
Temperature coecient    0.05%/℃,at=20℃(0.05%℉,at=68℉)
Output    2×SPDT
Current rating    16A/AC1
Switching voltage    250VAC/24VDC
Min.breaking capacity DC    500mW
Output indication    red LED
Mechanical life    1×107
Electrical life(AC1)    1×106
Reset time    max.200ms
Operating temperrature    -20℃ to +55℃(-4℉ to 131℉)
Storage temperature    -35℃ to +75℃(-22℉ to 158℉)
Mounting/DIN rail    Din rail EN/IEC 60715
Protecting degree    IP40 for front panel /IP20 terminals
Operating position    any
Overvoltage category    Ⅲ
Pollution degree    2
Max.cable size(mm²)    soild wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12)
Dimensions    90×18×64mm
Weight    2×SPDT:W240-82g,A230-81g
Standards    IEC/EN 61812-1,IEC/EN61010-1
