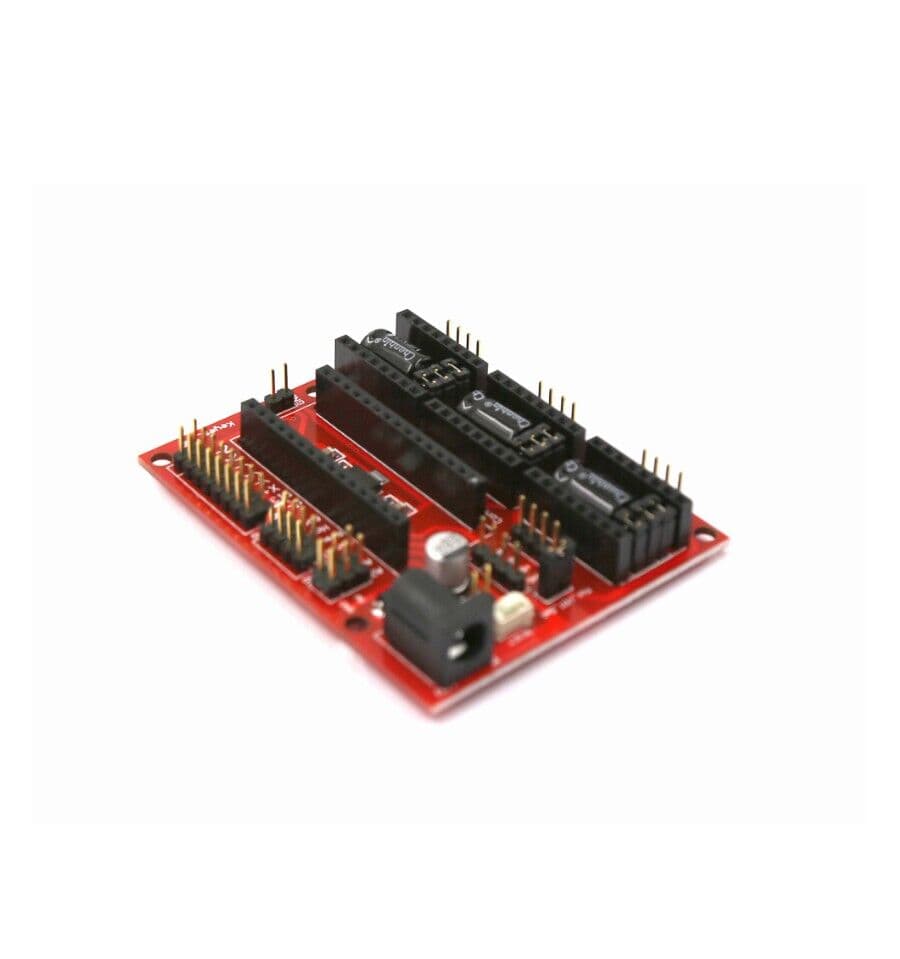

Arduino ARD-126, CNC Shield V4 – ЦНЦ шилд
Бренд:ARDUINO
Продавач:АЛФА ЕЛЕКТРОНИК
290ДЕН
Ананас. Е-трговец број 1 во Северна Македонија.
Најдобра вредност за парите 2025/2026 од СЕРТИФИКАТ .
Трговецот потврдува постоење на законска гаранција за сообразност на стоката.
DESCRIPTION
This expansion board as a driver expansion board, can be used for engraving machines, 3D printers. It is a total of three slots, can drive three A4988 stepper motor. Each road stepper motors only need two IO ports. In other words, six IO ports can be well managed three stepper motors. Very convenient to use.
SPECIFICATIONS
Shield Type:
- CNC
Notes
- Worked with Arduino Nano
- Arduino Nano not included
- A4988 Stepper Motor Driver not included
EXTRA SPECIFICATIONS
- 3 axis stepper motor driver
- Compatible with micro-drive laser engraving machine, three-axis CNC engraving machine
- Can control the two-phase four-wire stepper motor up to 2A
- Digital IO interface enables easy connections to other modules, such as ENDSTOPs
- I2C interface enables connection to the LCD I2C or other I2C module
- DC5v interface, 7.5-12V voltage input
- GRBL compatible
- This model is designed to do full steps only
Dimensions
- 71.5 x 58 x 12.5mm
