Arduino PAM8610, Кит Аудио 2×15W 9–12V 4–8Ω + MUTE

Description

The PAM8610 is a 10+10 watt stereo Class-D audio amplifier with DC Volume Control which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. The PAM8610 runs off of a 7V to 15V supply at much higher efficiency than competitors’ ICs.

Features

• 10W @ 10%THD/Channel Output into a 8Ω Load at 13V
• Low Noise: -90dB
• Over 90% Efficiency
• With Shutdown/Mute/Fade Function
• Over Current , Thermal and Short-Circuit Protection
• Low THD+N
• Low Quiescent Current
• Pop Noise Suppression
• Small Size

Applications

• Bluetooth Stereo Audio hands free / headsets
• In robots that speak or generate sounds to indicate activities
• Portable Speakers
• LCD Monitors / TV Projectors
• Arduino or Raspberry Pi Game Machines
• Speaker Phones

Technical Specifications

• Model: PAM8610-AOC1
• Operating Voltages: 7V to 15V (Nominal : 12v)

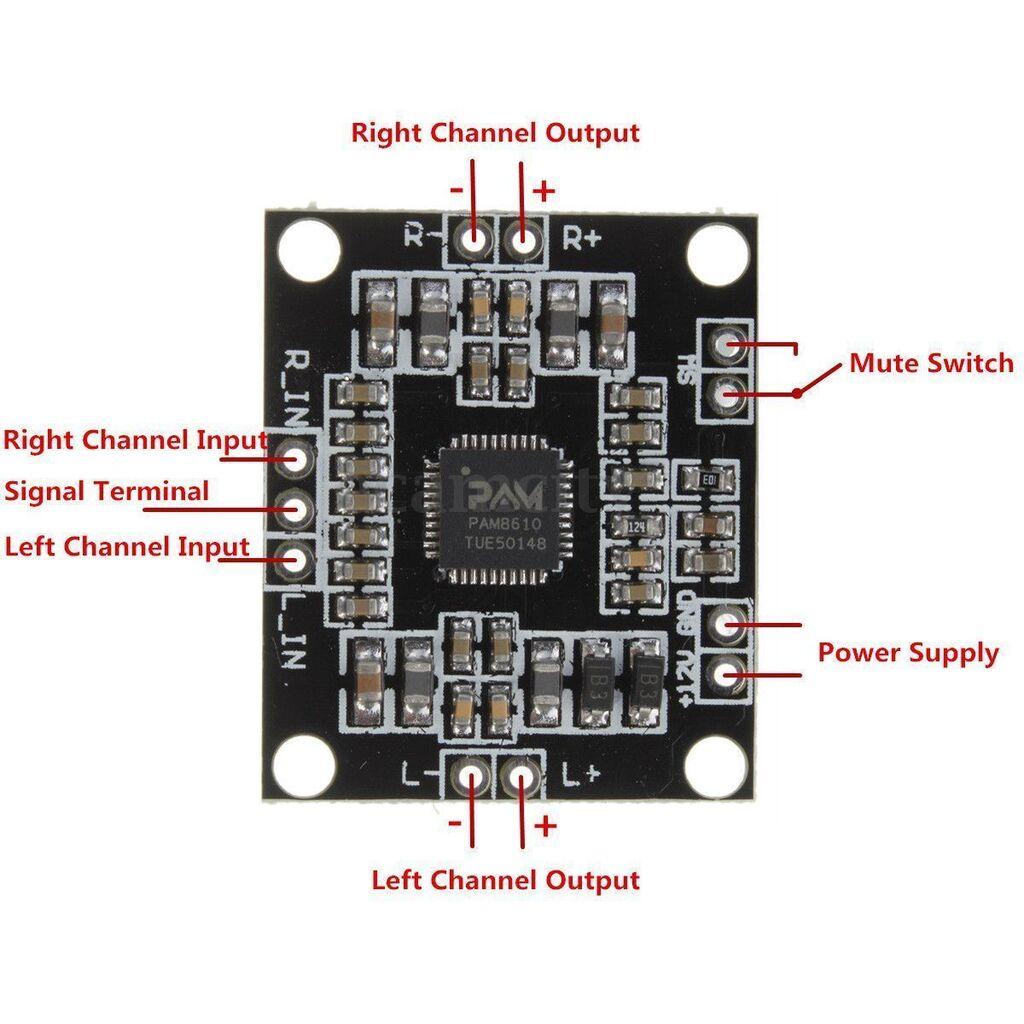

• Features: Mini amplifier board with compact size, high output power and HD audio.
• Amplifier IC: PAM8610
• Load : Can direct drive 4 or 8 ohm small speakers
• Output Power: 10Wx2(8Ω) 15Wx2(4Ω) – heatsink should be installed for higher wattage output
• Dimensions: 1.18 in x 1.00 in x 0.12 in (3.00 cm x 2.52 cm x 0.3 cm)
• Weight: 3.0g (aprox without headers)
