ASRock Матична Плоча AM5 B850 Steel Legend WiFi DDR5 PCIe 5.0 90-MXBQS0-A0UAYZ

Model name: ASROCK B850 STEEL LEGEND WIFI

Specification :

• CPU: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• Chipset: AMD B850
• Memory:
  • Dual Channel DDR5 Memory Technology
  • 4 × DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
  • Max system memory: 256GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO)
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics:
  • Integrated AMD RDNA™ graphics (support varies by CPU)
  • 1 × HDMI 2.1 TMDS/FRL 8G, HDR, HDCP 2.3, max resolution 4K 120Hz
• Audio:
  • 7.1 CH HD Audio with Content Protection (Realtek ALC4082)
  • Individual PCB Layers for R/L Audio Channel
  • Direct Drive Tech on Front headphone port (up to 600 Ω headsets)
  • Nahimic Audio
• LAN:
  • 2.5 Gigabit LAN (Dragon RTL8125BG)
  • Supports Dragon 2.5G LAN software, Smart Auto Adjust Bandwidth Control, MU-MIMO
• Wireless LAN:
  • 802.11be 2×2 Wi-Fi 7 module
  • Supports 2.4GHz/5GHz/6GHz, 160MHz channel bandwidth
  • 1 antenna supporting 2×2 diversity
  • Bluetooth 5.4
• Slots:
  • CPU: 1 × PCIe 5.0 ×16 (PCIE1, ×16 mode)
  • Chipset: 1 × PCIe 4.0 ×16 (PCIE2, ×4 mode)
  • 1 × Vertical M.2 Socket (Key E) for WiFi/BT PCIe module
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• Storage:
  • CPU:
  • 1 × Blazing M.2 Socket (M2_1, PCIe Gen5×4 2280, 128 Gb/s)
  • 1 × Hyper M.2 Socket (M2_2, PCIe Gen4×4 2260/2280, 64 Gb/s)
  • Chipset:
  • 1 × Hyper M.2 Socket (M2_3, PCIe Gen4×4 2230/2260/2280, 64 Gb/s)
  • 1 × Hyper M.2 Socket (M2_4, PCIe Gen4×4 2260/2280, 64 Gb/s)
  • ASMedia ASM1061: 4 × SATA3 6.0 Gb/s
  • RAID: Supports RAID 0, 1, 10 for M.2 NVMe devices
• USB:
  • CPU:
  • 2 × USB 3.2 Gen2 Type-C (Rear)
  • 1 × USB 3.2 Gen2 Type-A (Rear)
  • 1 × USB 3.2 Gen1 Type-A (Rear)
  • Chipset:
  • 1 × USB 3.2 Gen2×2 Type-C (Front)
  • 1 × USB 3.2 Gen2 Type-A (Rear)
  • 6 × USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
  • 8 × USB 2.0 (4 Rear, 4 Front)
• Connectors:
  • 1 × SPI TPM Header
  • 1 × Thermistor Cable Header
  • Power LED and Speaker Header
  • 1 × RGB LED Header
  • 3 × Addressable LED Headers
  • 2 × CPU Fan Connectors (4-pin)
  • 3 × Chassis Fan Connectors (4-pin)
  • 1 × AIO Pump Fan Connector (4-pin)
  • 1 × 24-pin ATX Power Connector
  • 2 × 8-pin 12V Power Connectors
  • 1 × Front Panel Audio Connector
  • 2 × USB 2.0 Headers (support 4 ports)
  • 2 × USB 3.2 Gen1 Headers (support 4 ports)
  • 1 × Front Panel USB 3.2 Gen2×2 Type-C Header (20 Gb/s)

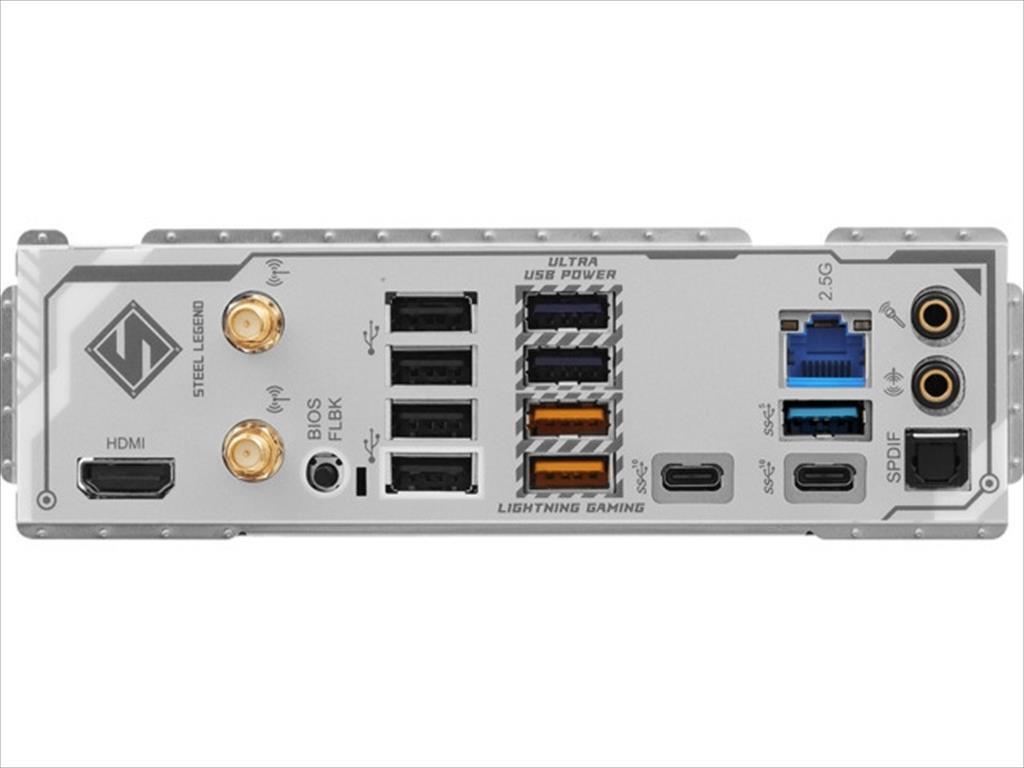

• Rear Panel I/O:
  • 2 × Antenna Ports
  • 1 × HDMI Port
  • 1 × Optical SPDIF Out
  • 2 × USB 3.2 Gen2 Type-C (10 Gb/s)
  • 3 × USB 3.2 Gen1 Type-A
  • 2 × USB 3.2 Gen2 Type-A (10 Gb/s)
  • 4 × USB 2.0
  • 1 × RJ-45 LAN Port
  • 1 × BIOS Flashback Button
  • 1 × Line Out Jack (Gold Audio)
  • 1 × Microphone Input Jack (Gold Audio)
• Software & UEFI:
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
• Form Factor: ATX, 30.5 cm × 24.4 cm (12.0" × 9.6"), 8 Layer PCB
• OS: Windows 10 / 11 64-bit
• Certifications: FCC, CE, ErP/EuP ready
