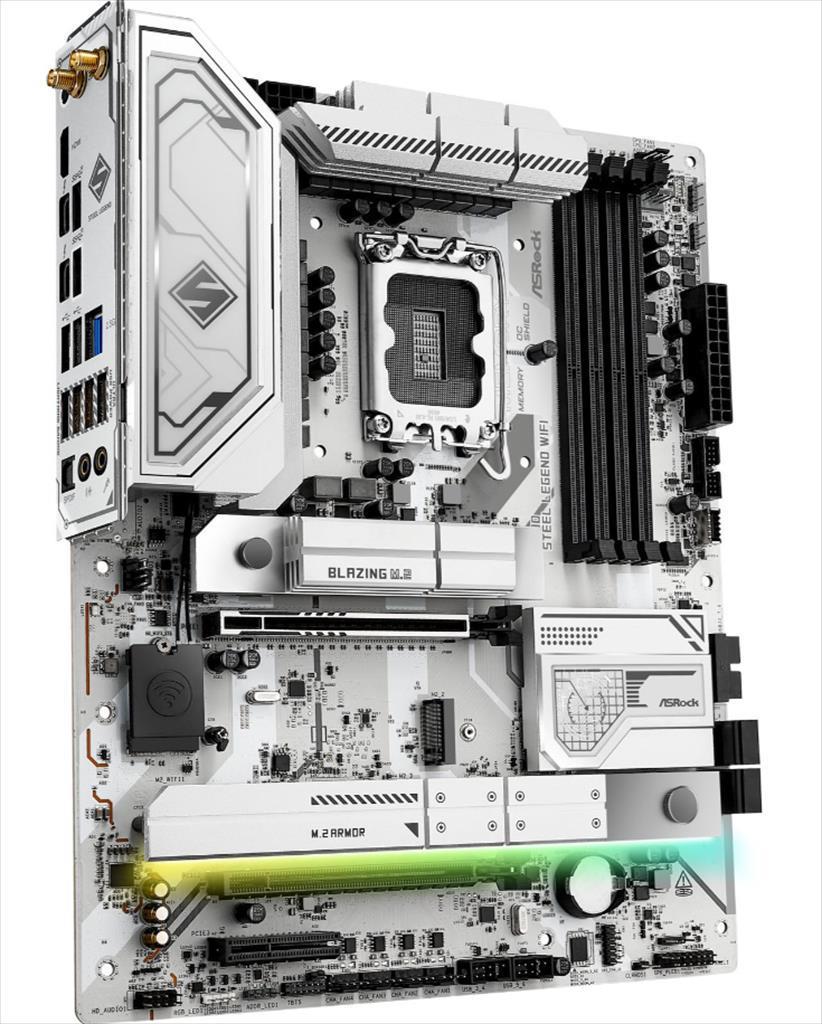

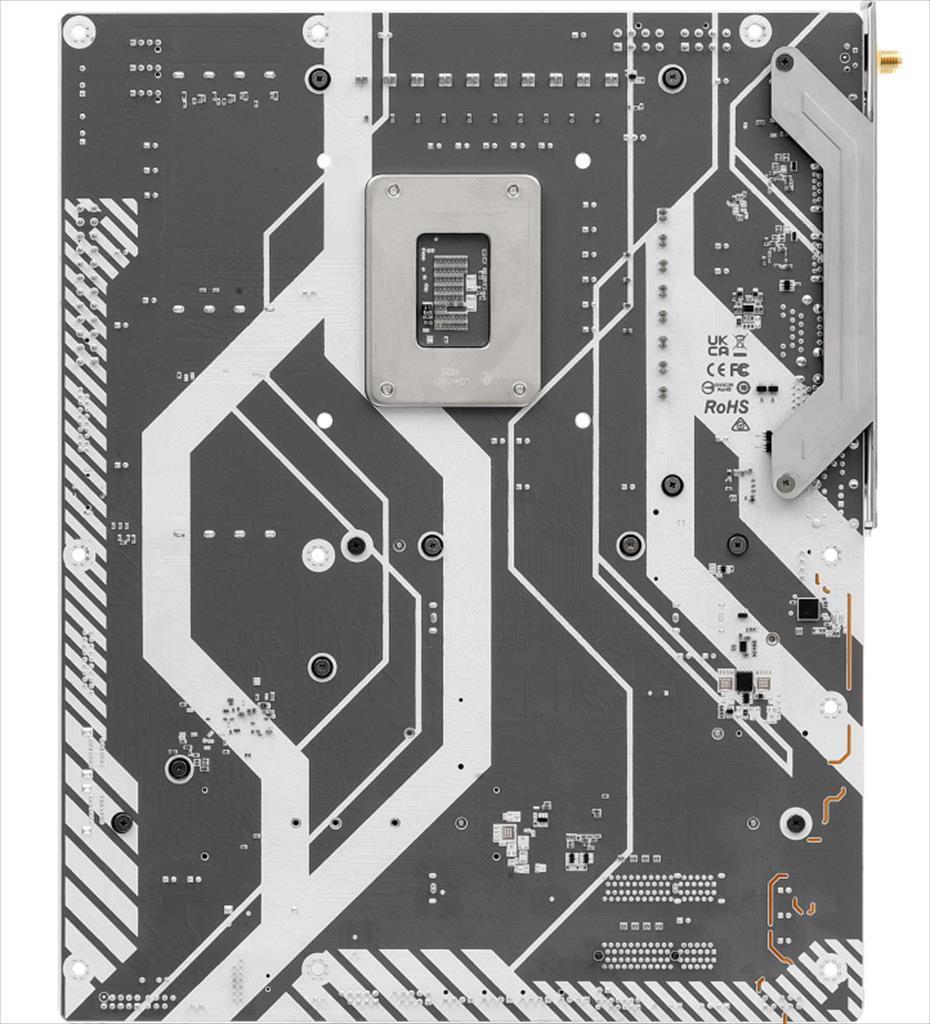

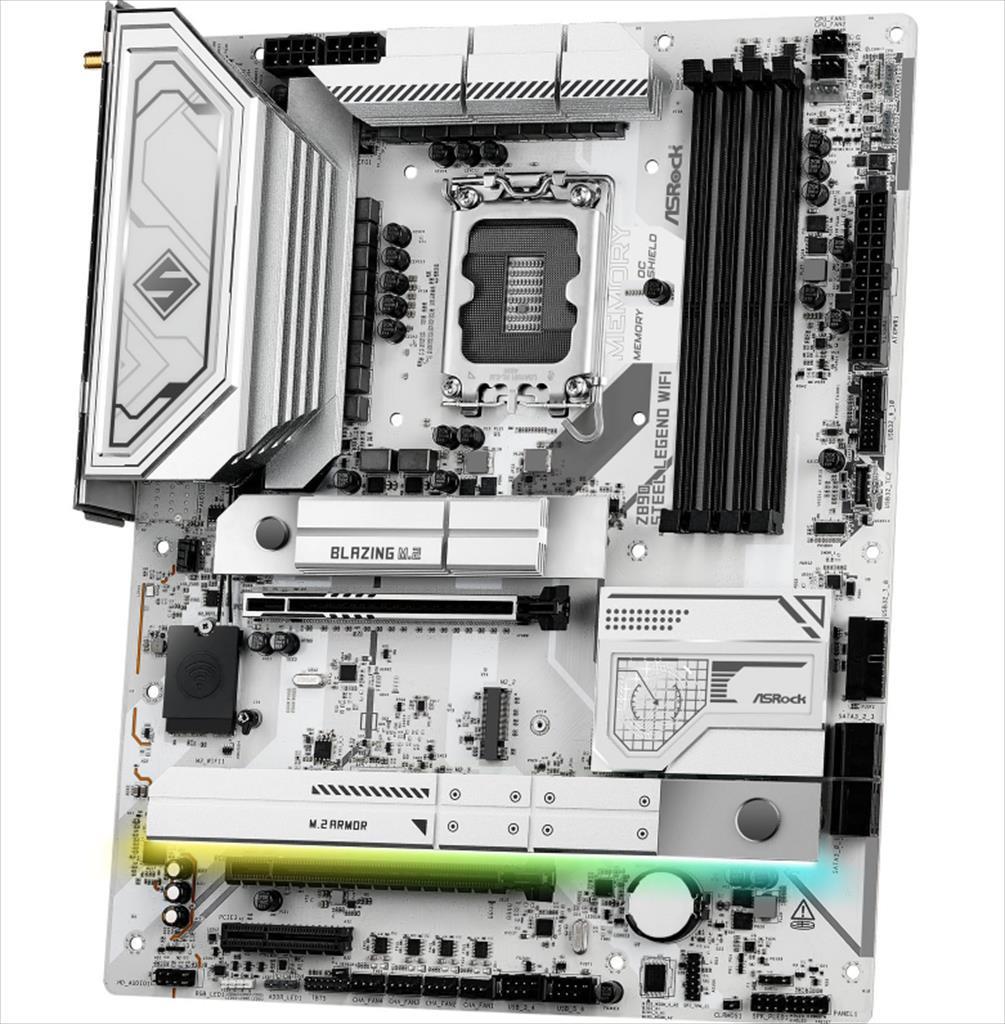

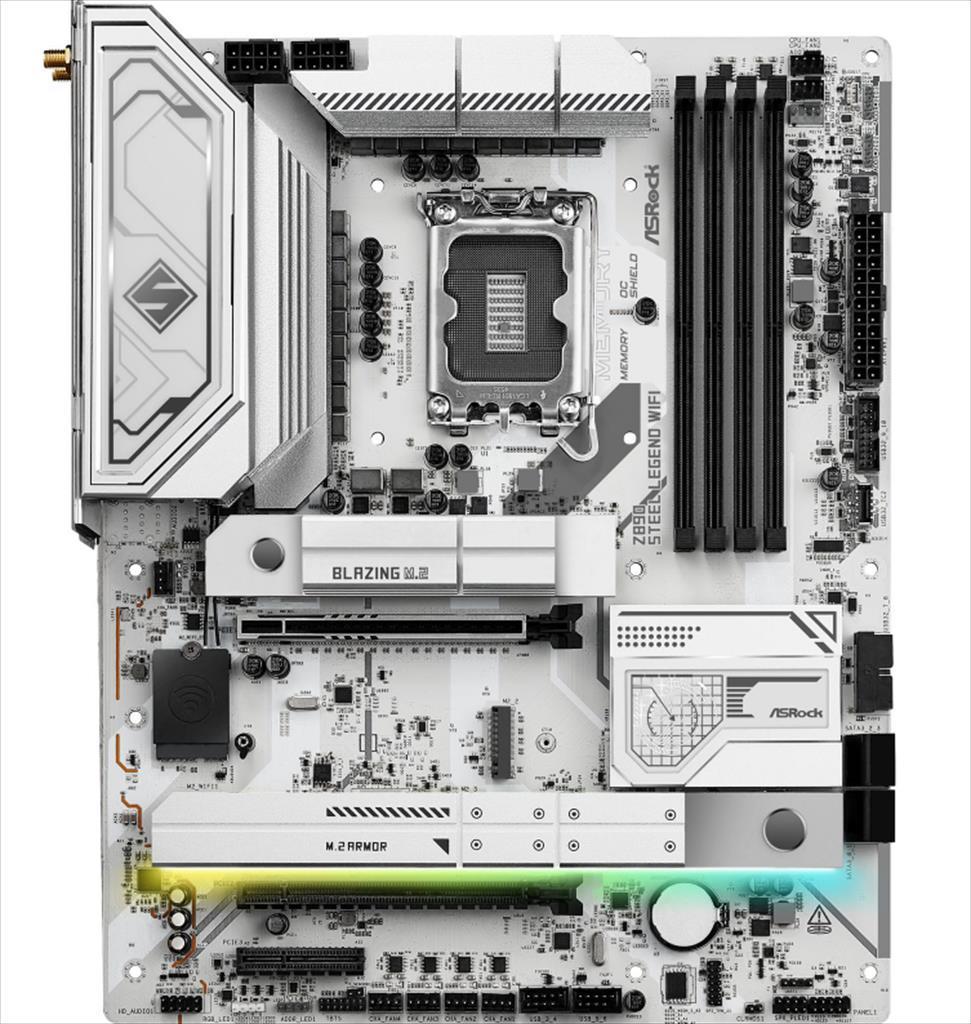

ASROCK Матична плоча Z890 Steel Legend WiFi LGA1851 4xDDR5 9466MHz PCIe x16 5.0 2xPCIe x4 4xM.2 4xSATA III HDMI 2xThunderbolt 4 2.5G LAN Wi-Fi 7 BT 5.4 90-MXBPF0-A0UAYZ

Model Name: ASROCK Z890 STEEL LEGEND WIFI

Specification :

• CPU Support: Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
• Chipset: Intel® Z890
• Memory:
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)
  • Max. capacity of system memory: 256GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0x
• 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics:
  • Intel® Xe LPG Graphics Architecture
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• Audio:
  • 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  • Impedance Sensing on Rear Out
  • Individual PCB Layers for R/L Audio Channel
  • Nahimic Audio
• LAN:
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
  • Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI
• Wireless LAN:
  • 802.11be 2x2 Wi-Fi 7 Module
  • Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
  • Supports 2.4GHz/5GHz/6GHz frequency band
  • Supports 320MHz channel bandwidth with 6GHz frequency band
  • Supports Bluetooth 5.4
• Slots:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
  • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
• Storage:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s), 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s)
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s)
  • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s)
  • 4 x SATA3 6.0 Gb/s Connectors
• RAID:
  • SATA: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
• USB:
  • Rear: 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
  • Front: 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
• Connectors:
  • 1 x Thermistor Cable Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header
  • 1 x RGB LED Header, 3 x Addressable LED Headers
  • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

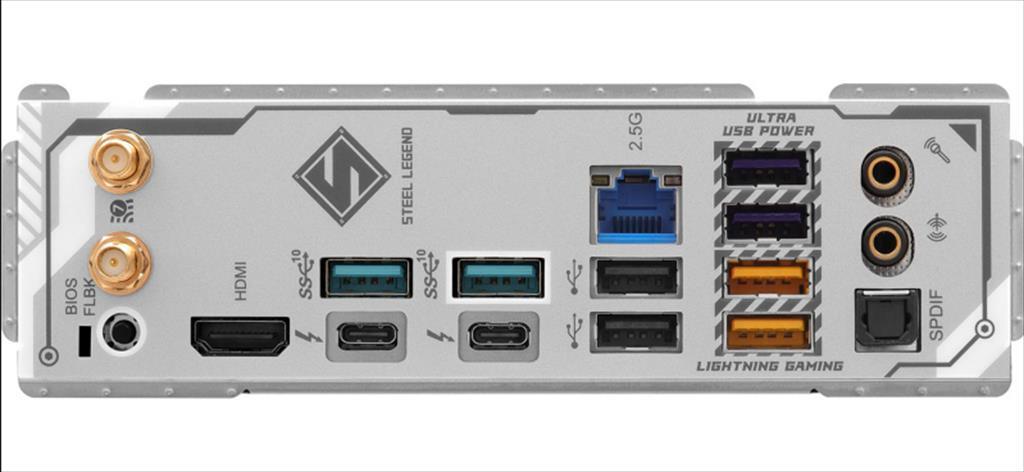

• Rear Panel I/O:
  • 2 x Antenna Ports, HDMI, DisplayPort
  • USB Ports, Optical SPDIF Out
  • LAN, Audio Jacks, BIOS Flashback
• Software and UEFI:
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Polychrome SYNC, Full HD UEFI
• Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, 2oz Copper PCB
• OS Support: Microsoft Windows® 11 64-bit
• Certifications: FCC, CE, ErP/EuP ready
