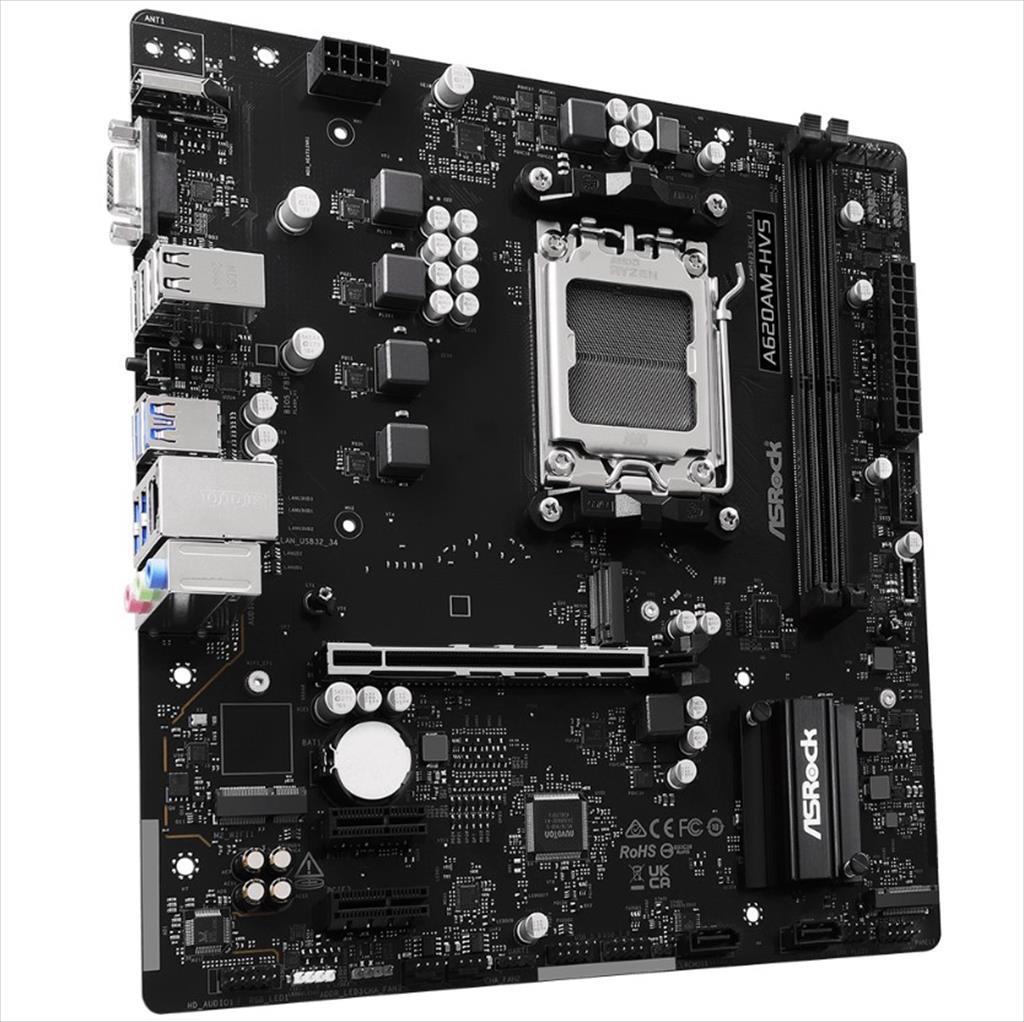

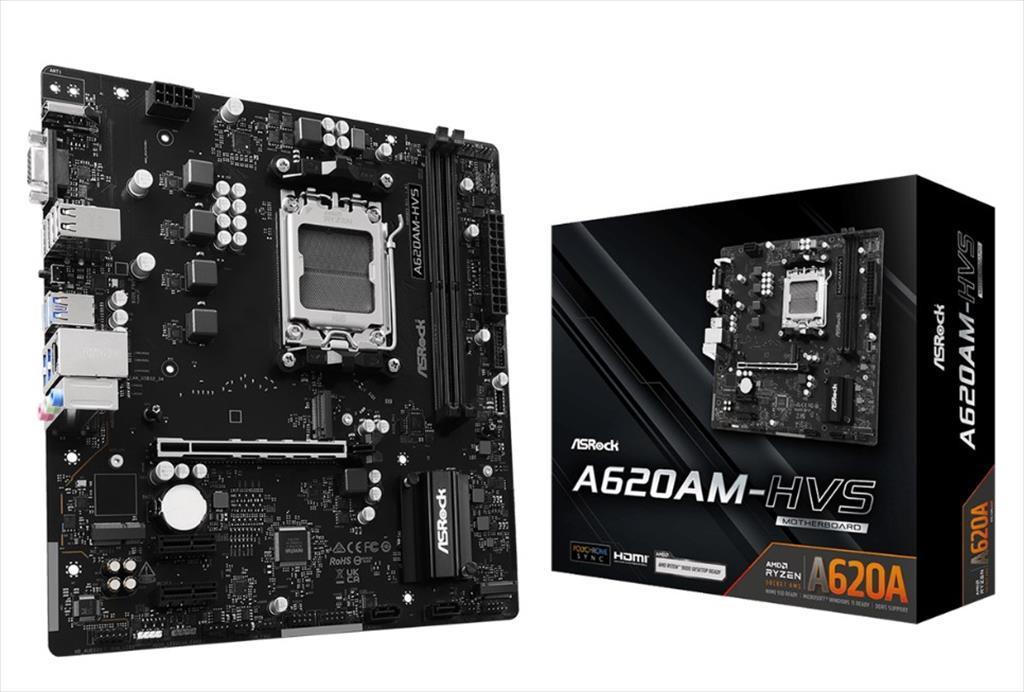

Asrock Mb Am5 A620Am-Hvs , 2Xddr5 6800Mhz, 1Xpciex16 4.0, 2Xpciex1, 2X M.2, Hdmi, Vga, 2Xsataiii, 90-Mxbsr0-A0Uayz

Model Name: MB AM5 A620AM-HVS ASROCK

Specification :

• CPU Support: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• Chipset: AMD A620A
• Memory:
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)
  • Max. capacity of system memory: 128GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics:
  • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
• Audio:
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
• Slots:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
  • 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• Storage:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
  • 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
  • 2 x SATA3 6.0 Gb/s Connectors
• RAID:
  • SATA: Supports RAID 0 and RAID 1 for SATA storage devices
  • NVMe: Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
• USB:
  • Rear: 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)),1 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
  • Front: 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
• Connectors:
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
  • 3 x Addressable LED Headers
  • 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
  • 3 x Chassis/Water Pump Fan Connectors (4-pin)
  • 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 1 x USB 3.2 Gen1 Header
• Rear Panel I/O:
  • 2 x Antenna Mounting Points, 1 x D-Sub Port, 1 x HDMI Port
  • 4 x USB 3.2 Gen1 Type-A Ports, 4 x USB 2.0 Ports, 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI:
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Polychrome SYNC, Full HD UEFI
• Form Factor: Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm
• OS Support: Microsoft Windows® 10/11 64-bit
• Certifications: FCC, CE, ErP/EuP ready
