GIGABYTE Матична Плоча Am5 B850 Eagle Wifi7 Ice Gigabyte 4Xddr5 8200Mhz (O.C), Dp, Hdmi, Pci-Ex16 5.0, Pci-Ex8 4.0, Pci-Ex4 4.0, 3Xm.2, 4Xsata3, Wi-Fi 7, Bt 5.4

Model name: GIGABYTE B850 EAGLE

Specification :

• CPU
  • Socket: AMD Socket AM5
  • Supported Processors: AMD Ryzen™ 9000 / 8000 / 7000 Series
• Chipset
  • Chipset: AMD B850
• Memory
  • Supported Memory: DDR5 8200(O.C) – 4400 MT/s
  • DIMM Slots: 4 x DDR5 DIMM sockets
  • Maximum Capacity: 256 GB (64 GB per DIMM)
  • Architecture: Dual channel
  • Supported Modules: Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
  • Overclocking Support: AMD EXPO™, XMP
• Onboard Graphics
  • Integrated GPU: AMD Radeon™ Graphics
  • DisplayPort: 1 x 3840x2160@144Hz
  • HDMI: 1 x 4096x2160@60Hz
• Audio
  • Codec: Realtek® Audio CODEC
  • High Definition Audio: 2/4/5.1/7.1-channel
• LAN
  • Chip: Realtek® 2.5GbE LAN
  • Speeds: 2.5 / 1 / 0.1 Gbps
• Wireless
  • Module: Realtek® Wi-Fi 7 RTL8922AE
  • Standards: 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz
  • Bluetooth: 5.4
  • 11be Support: 160MHz
• Expansion Slots
  • CPU PCIEX16: 1 x PCIe x16
    • Ryzen 9000/7000 → PCIe 5.0 x16
    • Ryzen 8000 Phoenix 1 → PCIe 4.0 x8
    • Ryzen 8000 Phoenix 2 → PCIe 4.0 x4
  • Chipset PCIEX16: 1 x PCIe 4.0 x4
  • PCIEX1 Slots: 2 x PCIe 3.0 x1
• Storage Interface
  • M2A_CPU: CPU integrated, PCIe 5.0/4.0 x4/x2
  • M2B_CPU: CPU integrated, PCIe 4.0 x4/x2
  • M2C_SB: Chipset integrated, PCIe 4.0 x2
  • SATA: 4 x SATA 6Gb/s, RAID 0/1/5/10 support
• USB Ports
  • CPU: 1 x USB Type-C (3.2 Gen1), 2 x USB 3.2 Gen2 Type-A (red)
  • Chipset: 1 x USB Type-C (3.2 Gen1), 4 x USB 3.2 Gen1, 4 x USB 2.0/1.1
  • Internal Headers: 1 x USB Type-C (3.2 Gen1), 1 x USB 3.2 Gen1, 4 x USB 2.0/1.1
• Internal I/O Connectors
  • 1 x 24-pin ATX main power
  • 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V
  • CPU/system fan headers, water cooling pump headers
  • RGB/Addressable RGB headers
  • M.2 Socket 3 connectors
  • SATA connectors
  • Front panel, audio, USB headers
  • TPM header, reset/clear CMOS buttons

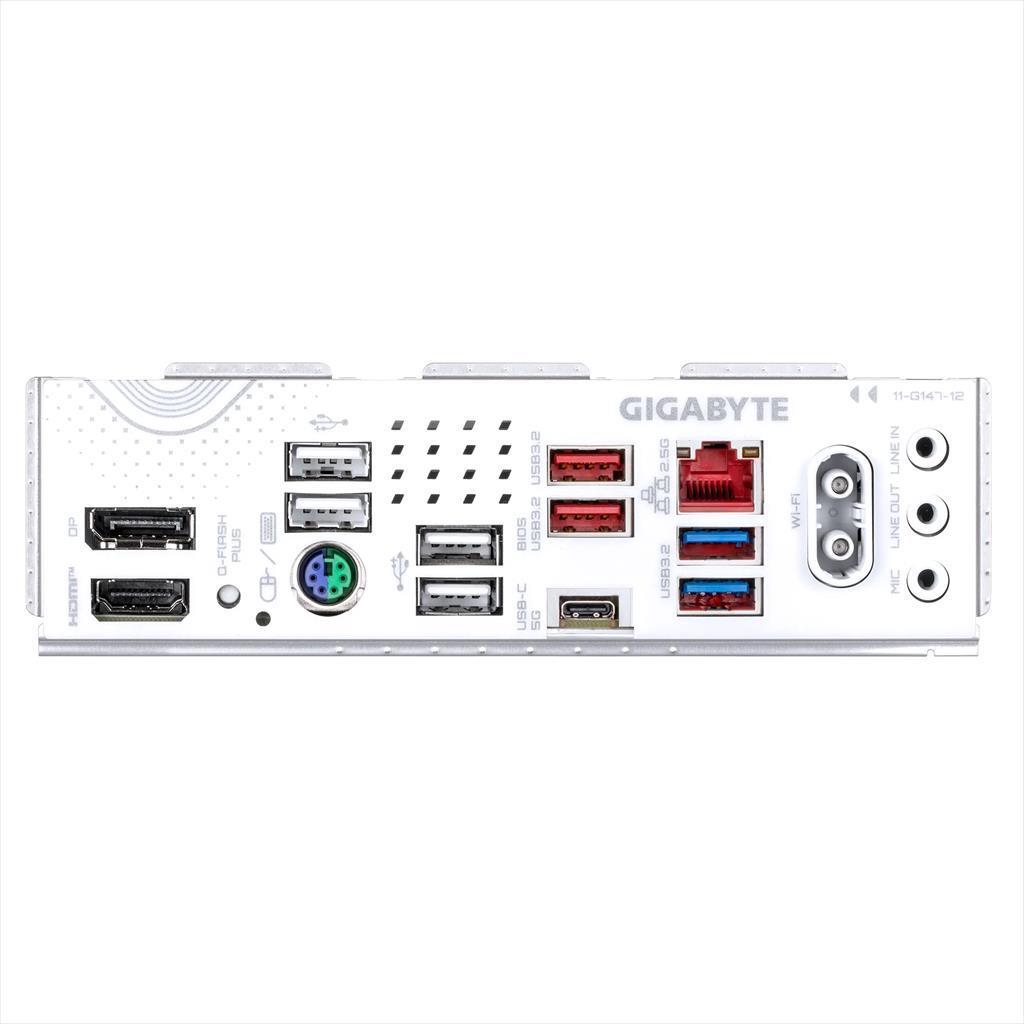

• Back Panel Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Q-Flash Plus button
  • 4 x USB 2.0/1.1
  • 1 x PS/2
  • 2 x USB 3.2 Gen2 Type-A (red)
  • 1 x USB Type-C (3.2 Gen1)
  • 1 x RJ-45
  • 2 x USB 3.2 Gen1
  • 2 x Antenna connectors (2T2R)
  • 3 x Audio jacks
• I/O Controller
  • iTE® I/O Controller Chip
  • Voltage, temperature, fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning, fan speed control
• BIOS
  • 256 Mbit flash
  • AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Operating System
  • Support for Windows 11 64-bit
• Form Factor
  • ATX, 30.5cm x 24.4cm
